Taipan V2 Thermal Monocular - AGM
Shipping times
This item ships within approximately 1-3 weeks
The seriesAGM TaipanV2 offers a full range of compact, reliable, and high-performance thermal monoculars, designed to cover everything from basic needs to professional operations. All models share an advanced platform with significant improvements over previous generations, including thermal sensors of 12 microns , batteries rechargeable 18650 removableandhigh-resolution screensthat guarantee comfortable and effective observation in any environment.
General features of the TaipanV2 series:
- Available resolutions:256×192, 320×256 and 384×288
- Thermal sensors:< 35 mK and < 20 mK depending on the model
- Refresh rate:50 Hz in all models
- Screen:LCOS 1280×960 or OLED 1024×768 (depending on the version)
- Digital zoom: from 1.5x up to 22.5x depending on the model
- Image palette modes: Black Hot, White Hot, Red Hot and Fusion
- Storage:16 GB internal for video recording and captures
- Focus modes: fixed or focus ring depending on the model
- Wi-Fi Connectivitywith applicationAGM Connect
- FFC Correction: automatic, semi-automatic, and manual
- Scene modes:General and Compressed
- Autonomy:up to 7 hours (256) and up to 6.5 hours (320/384)
- Resistance:rugged design with certificationIP67
- External power supply: compatible with USB Type-C
- Automatic shut-off system by tiltfor energy saving
Available models:

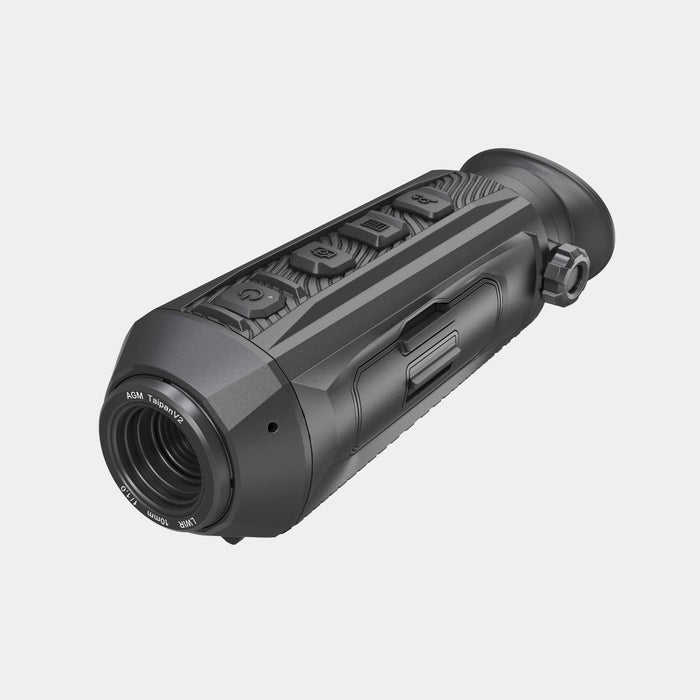

- TaipanV2 10-256:lightweight, with a wide field of view and fixed focus

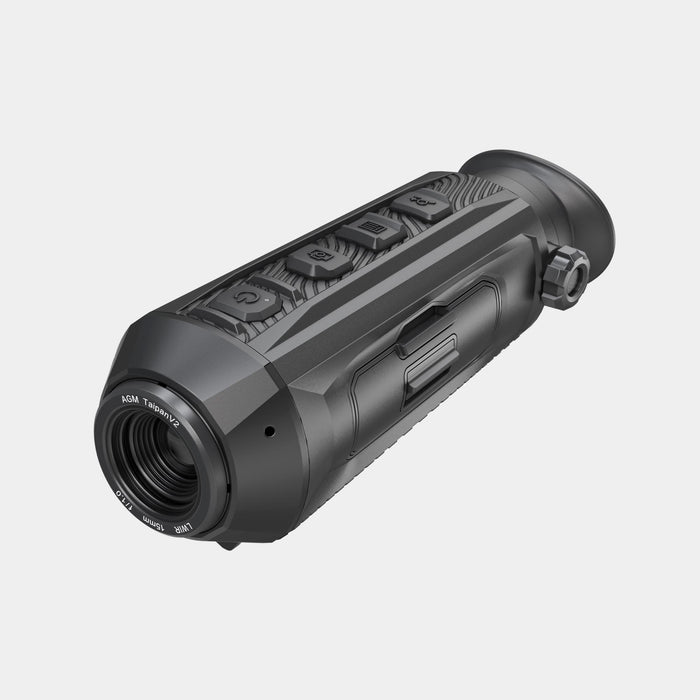

- TaipanV2 15-256:more reach without sacrificing portability

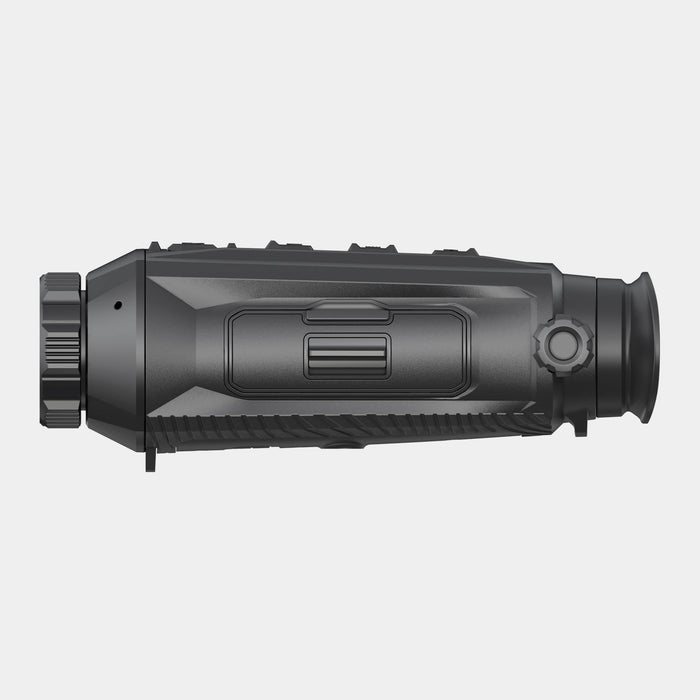

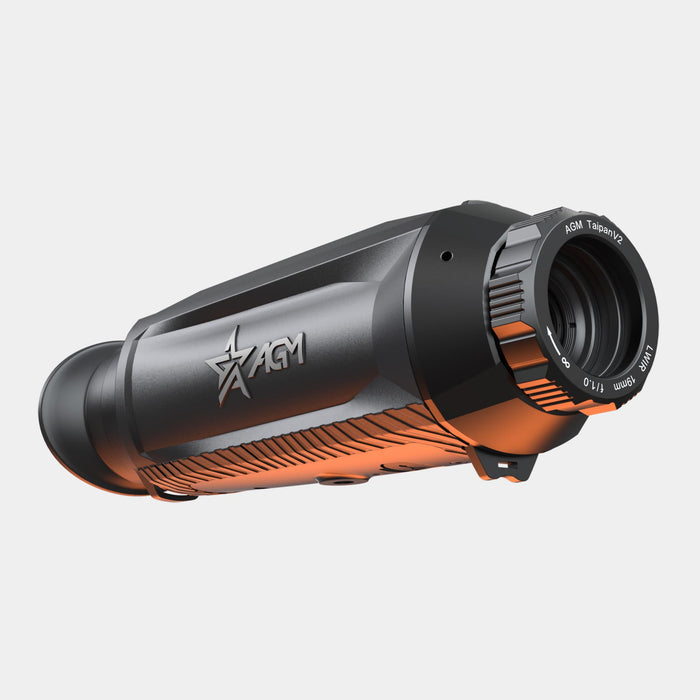

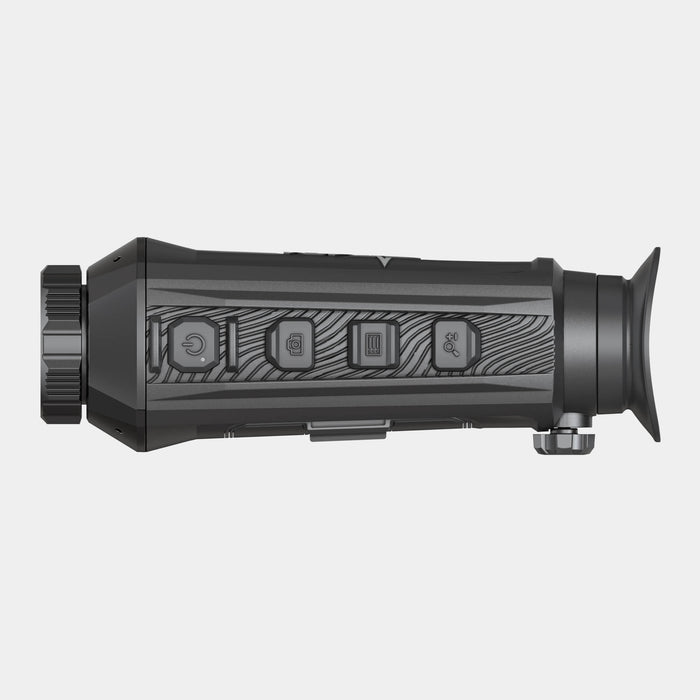

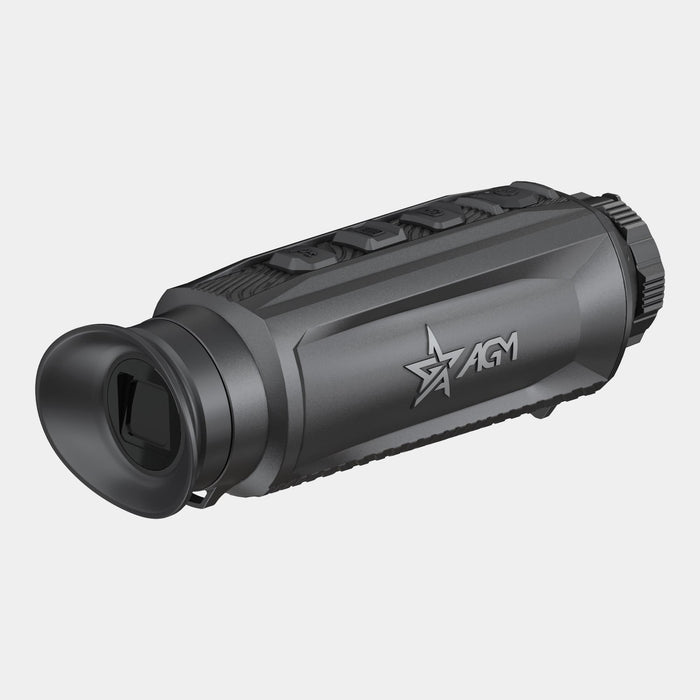

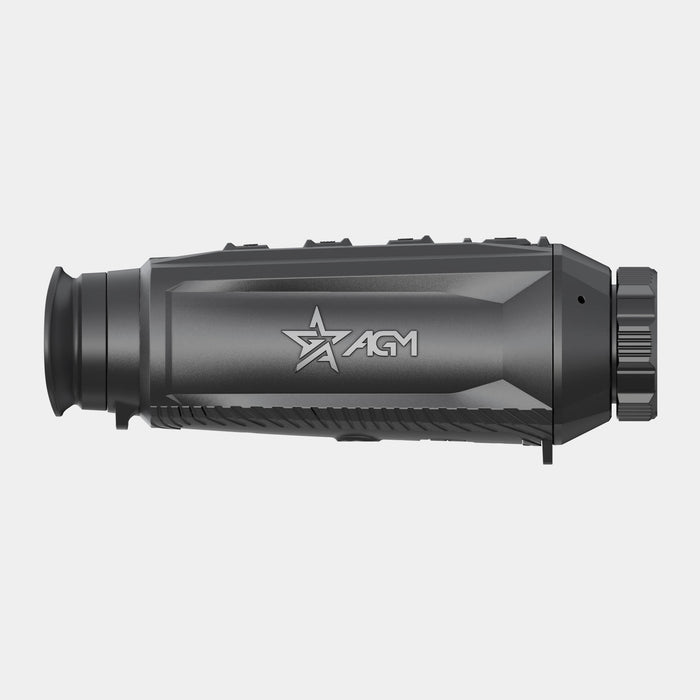

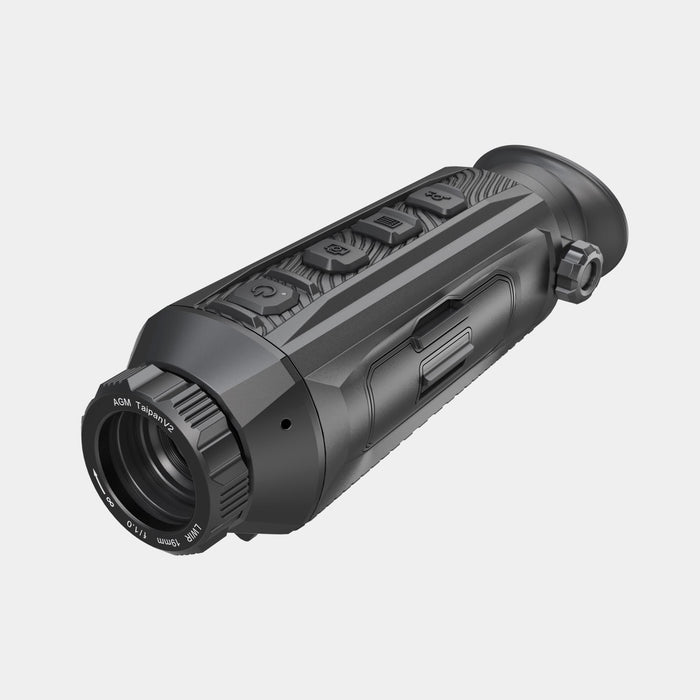

- TaipanV2 19-320:with higher resolution and zoom up to 22.5x

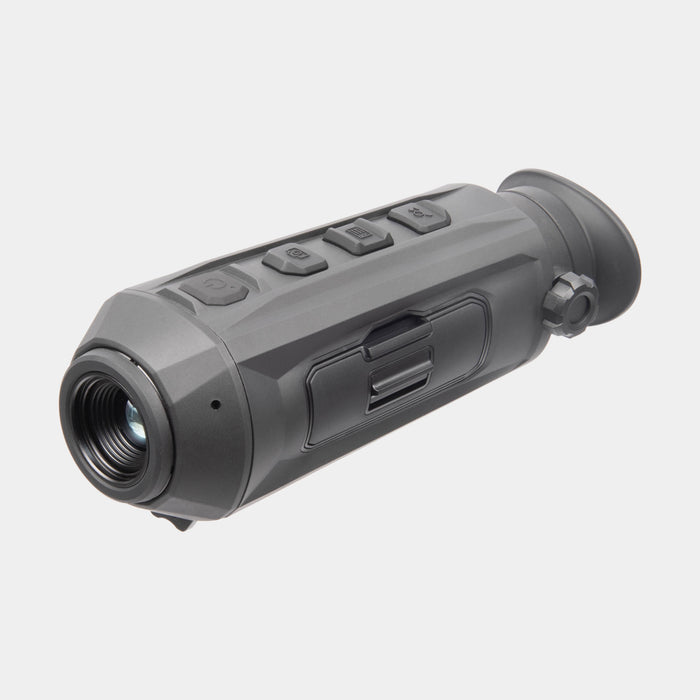

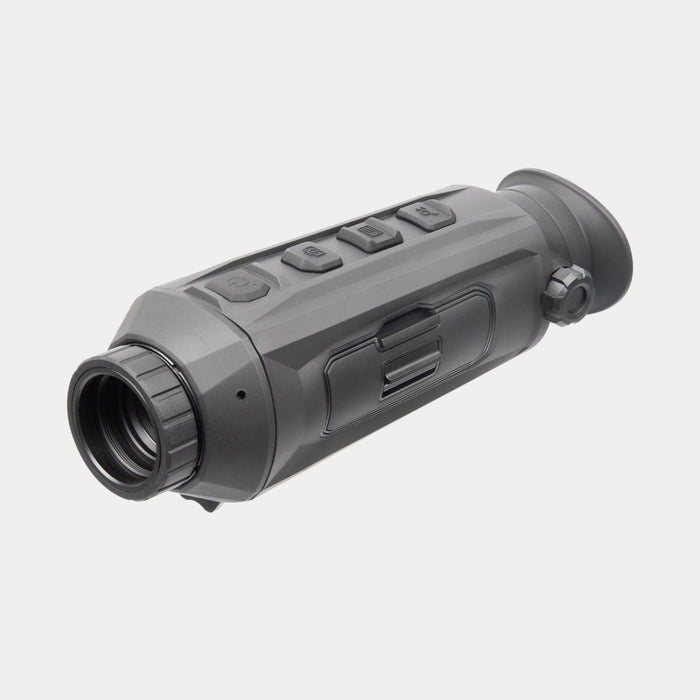

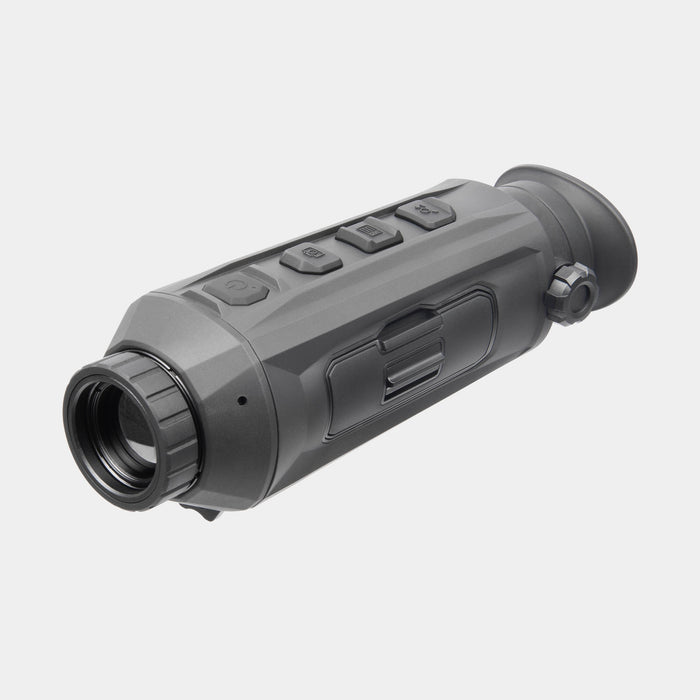

- TaipanV2 15-384, 19-384 and 25-384:maximum resolution and sensitivity, ideal for surveillance and demanding operations
Whether forhunting, rural surveillance, security, rescue, boating, or outdoor activities , the range TaipanV2 adapts to each user by combining versatility, image quality, and durabilityin a compact team ready for any mission.
All models include a transferable 5-year warranty.
Model | TaipanV2 10-256 | TaipanV2 15-256 | TaipanV2 19-320 | TaipanV2 15-384 | TaipanV2 19-384 | TaipanV2 25-384 |
Type of detector | 12μm VOx Uncooled FPA | 12μm VOx Uncooled FPA | 12μm VOx Uncooled FPA | 12μm VOx Uncooled FPA | 12μm VOx Uncooled FPA | 12μm VOx Uncooled FPA |
Resolution | 256×192 | 256×192 | 320×256 | 384×288 | 384×288 | 384×288 |
Refresh Rate | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
Spectral band | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm |
NETD | < 35 mK (25°C, F#=1.0) | < 35 mK (25°C, F#=1.0) | < 35 mK (25°C, F#=1.0) | < 20 mK (25°C, F#=1.0) | < 20 mK (25°C, F#=1.0) | < 20 mK (25°C, F#=1.0) |
Lens (Focal Length) | 10 mm, F1.0 | 15 mm, F1.0 | 19 mm, F1.0 | 15 mm, F1.0 | 19 mm, F1.0 | 25 mm, F1.0 |
Field of view (H × V) | 17.5° × 13.1° / 30.8m × 23m | 11.7° × 8.8° / 20.5m × 15.4m | 9.2° × 6.9° / 16.2m × 12.1m | 17.5° × 13.1° / 30.8m × 23m | 13.7° × 10.3° / 24m × 18m | 10.5° × 7.9° / 18.4m × 13.8m |
Increase | 1.5x, 3x, 6x, 12x | 2x, 4x, 9x, 17.5x | 3x, 6x, 11x, 22.5x | 1.5x, 3x, 6x, 12x | 2x, 4x, 8x, 16x | 2.5x, 5x, 10x, 20x |
Focus mode | Fixed | Fixed | Focus ring | Fixed | Focus ring | Focus ring |
Minimum focusing distance | 1 M | 1.5 M | 1.9 M | 1.5 M | 1.9 M | 2.5 M |
Detection range (1.8 m object) | 500 m | 750 M | 950 M | 750 M | 950 M | 1200 M |
Screen | 1280×960, 0.4”, LCOS | 1280×960, 0.4”, LCOS | 1280×960, 0.4”, LCOS | 1024×768, 0.39”, OLED | 1024×768, 0.39”, OLED | 1024×768, 0.39”, OLED |
Diopter Adjustment | -4D to +4D | -4D to +4D | -4D to +4D | -5D a +3D | -5D a +3D | -5D a +3D |
FFC Correction | Auto, Semi-Auto, Manual | Auto, Semi-Auto, Manual | Auto, Semi-Auto, Manual | Auto, Semi-Auto, Manual | Auto, Semi-Auto, Manual | Auto, Semi-Auto, Manual |
Popsicles | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion |
Exit pupil | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
Eye distance | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
Scene mode | General, Compressed | General, Compressed | General, Compressed | General, Compressed | General, Compressed | General, Compressed |
Brightness adjustment | Yes | Yes | Yes | Yes | Yes | Yes |
Tone adjustment | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm |
Contrast adjustment | Yes | Yes | Yes | Yes | Yes | Yes |
Hotspot | Yes | Yes | Yes | Yes | Yes | Yes |
Standby mode | Yes | Yes | Yes | Yes | Yes | Yes |
Internal storage | 16 GB EMMC | 16 GB EMMC | 16 GB EMMC | 16 GB EMMC | 16 GB EMMC | 16 GB EMMC |
Video/Audio Recording | Yes / Yes | Yes / Yes | Yes / Yes | Yes / Yes | Yes / Yes | Yes / Yes |
Image capture | Yes | Yes | Yes | Yes | Yes | Yes |
Thermal tracking | Yes | Yes | Yes | Yes | Yes | Yes |
Distance measurement | Yes | Yes | Yes | Yes | Yes | Yes |
PIP | Yes | Yes | Yes | Yes | Yes | Yes |
Battery type | 1× 18650 removable rechargeable | 1× 18650 removable rechargeable | 1× 18650 removable rechargeable | 1× 18650 removable rechargeable | 1× 18650 removable rechargeable | 1× 18650 removable rechargeable |
Autonomy | up to 7 h (@25°C, WiFi off) | up to 7 h (@25°C, WiFi off) | up to 6 h (@25°C, WiFi off) | up to 6.5 h (@25°C, WiFi off) | up to 6.5 h (@25°C, WiFi off) | up to 6.5 h (@25°C, WiFi off) |
Food | 5 VDC/2 A, USB-C | 5 VDC/2 A, USB-C | 5 VDC/2 A, USB-C | 5 VDC/2 A, USB-C | 5 VDC/2 A, USB-C | 5 VDC/2 A, USB-C |
Operating temperature | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C |
Protection level | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Dimensions | 165×60×64 mm | 165×60×64 mm | 173×60×64 mm | 165×60×64 mm | 173×60×64 mm | 173×60×64 mm |
Weight | 0.27 kg | 0.28 kg | 0.3 kg | 0.3 kg | 0.31 kg | 0.31 kg |
